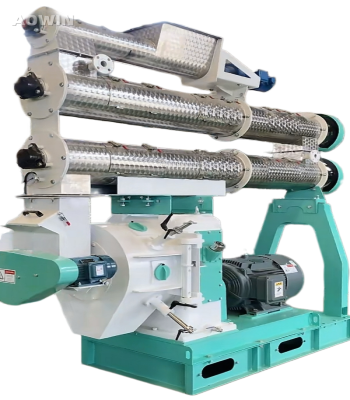

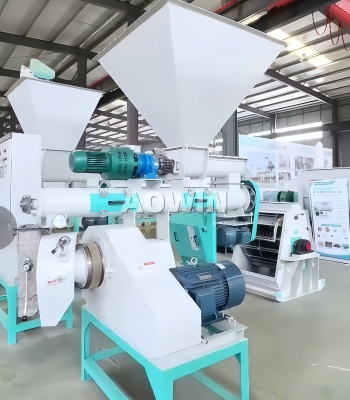

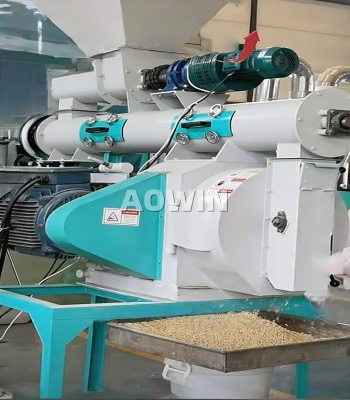

Shrimp Feed Pellet Machine
Our shrimp feed pellet mill adopts ring die structure equipped with three-layer steam conditioner. During production, raw materials undergo crushing and mixing. With steam conditioning, starch gelatinizes, protein denatures, and material bonding strength improves greatly. Finally, materials are extruded and formed uniformly through ring die holes.
Capacity: 0.5–12 T/H
Main Power: 22–110 KW
Various Capacities for Shrimp Feed Pellet Machine

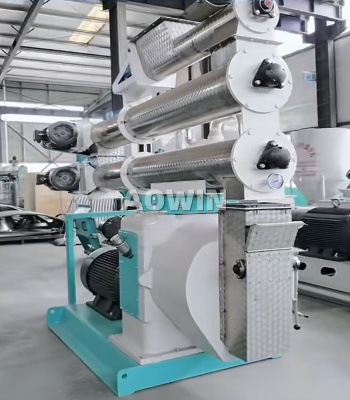

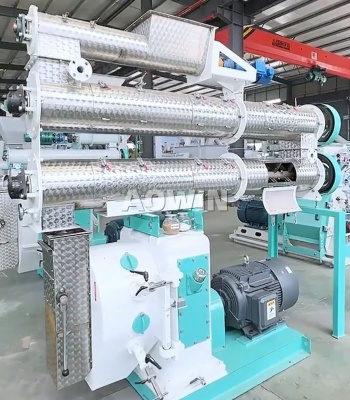

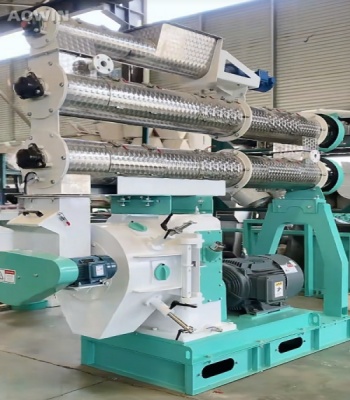

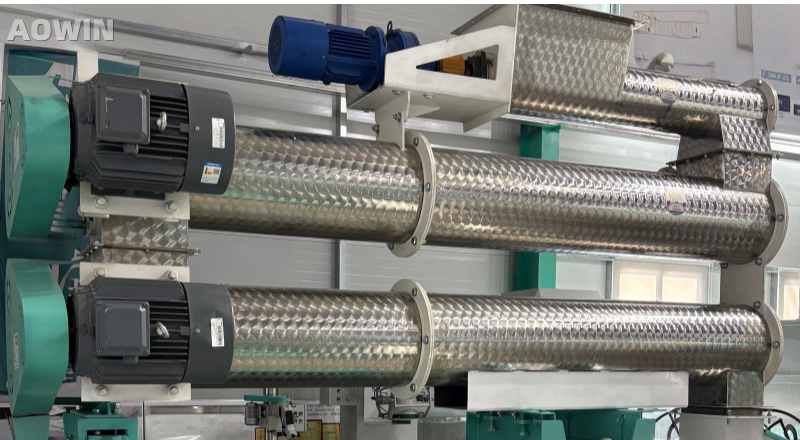

To prolong and control material retention time inside the conditioner, our pellet mill is fitted with three stacked-stage conditioners, also known as triple-layer conditioning system. Featuring series connection and multiple steam injection inlets, the equipment allows feed powder to pass through each layer sequentially. This fully mixes raw materials with steam and raises the powder ripening rate up to around 40%.
9KWH250 shrimp feed pellet machine Capacity:0.5-1.5T/H Main Power:37KW |
9KWH304 shrimp feed pellet machine Capacity:1-3-4T/H Main Power:30-37KW |
9KWH320 shrimp feed pellet machine Capacity:2-4T/H Main Power:37KW |
9KWH350 shrimp feed pellet machine Capacity:3-6T/H Main Power:55KW |
9KWH400 shrimp feed pellet machine Capacity:5-8T/H Main Power:75-90KW |
9KWH420 shrimp feed pellet machine Capacity:6-12T/H Main Power:110KW |

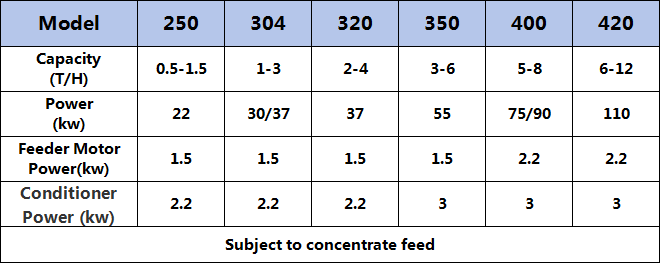

Specific parameters of the machine are as follows:
（Note: AOWIN Machinery continuously updates and improves its products. Therefore, if there is any discrepancy between the actual product and the pictures, feature descriptions or performance parameters displayed, the actual product shall prevail.）

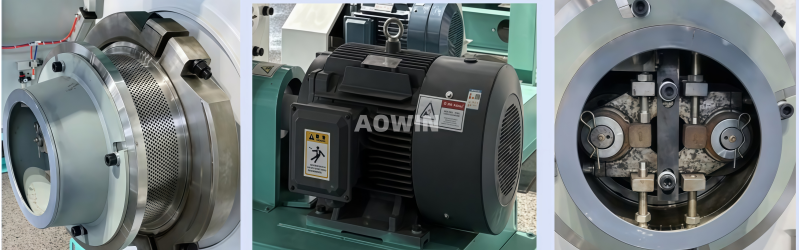

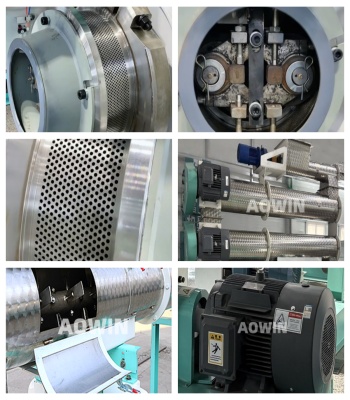

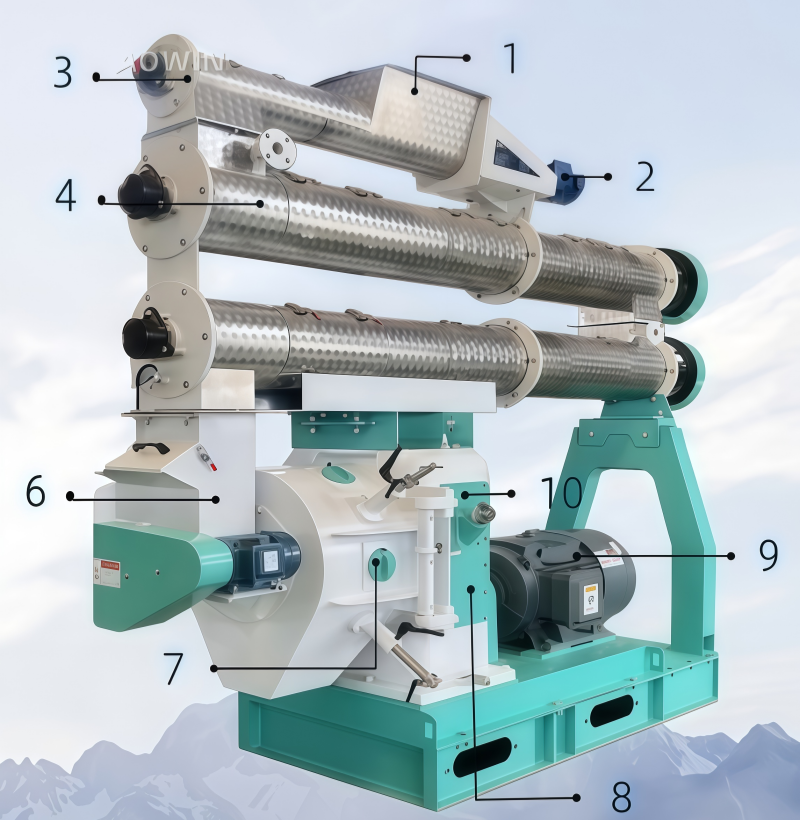

Components of Shrimp Feed Pellet Machine
| 1 | | Equipped with advanced frequency conversion motor for stable feeding, plus overload protection. Variable frequency control adjusts feeding speed to regulate production progress effectively. |
| 2 | Frequency Conversion Motor | Variable frequency speed regulation maximizes the production capacity of the shrimp feed pellet machine. |
| 3 | | Features higher rated load, lower noise, reduced maintenance costs, and extended machine running time. |
| 4 | Stainless Steel Conditioner | Core of granulation process: injects appropriate dry saturated steam into feed raw materials/powder to optimize properties. Conditioned feed reaches 80-90℃, 14-18% moisture, with 30-45s ideal conditioning time. |
| 5 | | Allows real-time viewing of material conditioning effect, enabling timely adjustment of saturated dry steam dosage. |
| 6 | | Dual-cutters design; adjust the handle to change the distance between cutter and ring die, achieving feed pellets of different lengths. |
| 7 | | Adopts direct gear transmission, featuring stable operation, high output, low noise, and easy operation. |
| 8 | | Connects two shafts firmly, ensuring no separation during machine operation for stable transmission. |
| 9 | | Variable frequency motor with adjustable ring die speed, adapting to different formulas and better material control. |
| 10 | | Equipped with safety pins to effectively prevent machine overload and ensure safe operation. |
Project Cases of the Shrimp Feed Pellet Machine
AOWIN Machinery is a professional manufacturer of feed pellet production equipment with independent intellectual property rights. We focus on technological innovation and R&D, with our products and process technology reaching the international leading level. Our shrimp feed pellet machines are exported to Indonesia, Thailand, Canada, Nigeria, Uzbekistan, Tanzania, Russia, the United Arab Emirates (UAE), Saudi Arabia and Zambia.

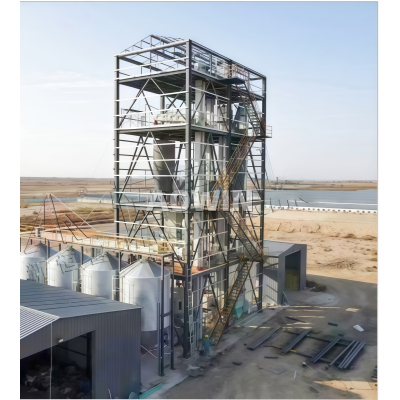

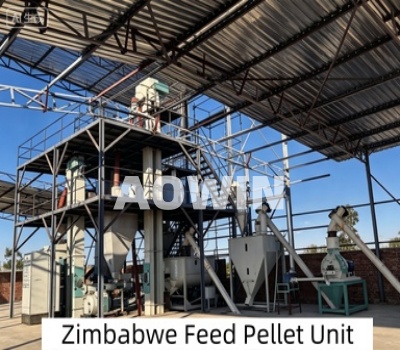

Shrimp Feed Pellet Machine Project in Zimbabwe
Project Name: Floating Fish Feed Plant in Zimbabwe
Capacity: 1.5-2t/h floating fish feed & 5-6t/h shrimp feed
Feed Pellet Size: 1-12mm
Installation Period: 90 days
Operating Workers: 4-5 persons

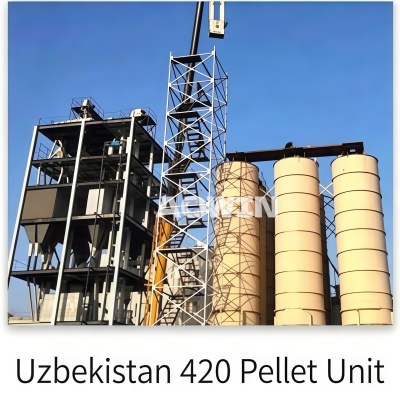

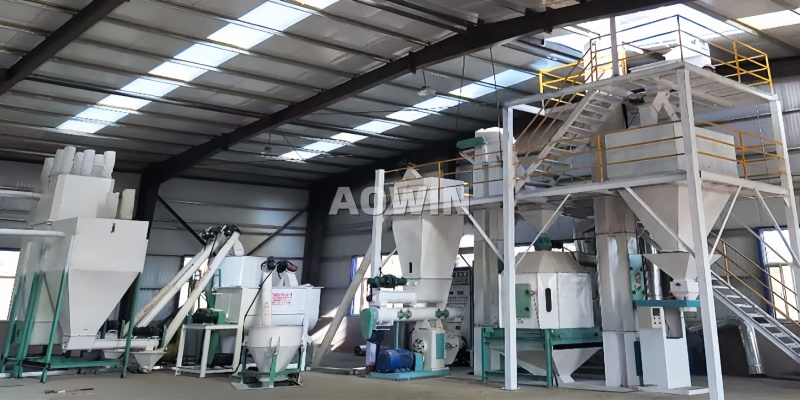

Uzbekistan shrimp feed making machine in Fish feed production line
Total power: 298kw
Raw material: fish meal, peanut meal, soybean meal, premix, etc
Feed pellet size: 1mm, 2mm pellet
Workshop size of this project: 8m*5m*14m (L*W*H)
Operate workers in this line: 5-6 person
Shrimp Feed Pellet Machine Project in Senegal
Project Name: Floating Fish Feed Plant in Zimbabwe
Capacity: 1.5-2t/h floating fish feed & 5-6t/h shrimp feed
Feed Pellet Size: 1-12mm
Installation Period: 90 days
Operating Workers: 4-5 persons
Shrimp feed making machine in the fish feed production line for shrimp and prawn feed production
Date: July 2016
Capacity: 27-28T/H
Feed Size: 1-4mm
The installation period: 60 Days
Control Mode: Automatic
FAQ About the Shrimp Feed Pellet Machine
Q: What is the function of the conditioner in the shrimp feed making machine?
Steam conditioning is a key technology in pellet feed processing, directly affecting pellet internal structure and appearance quality. Two key factors for good conditioning are steam quality and conditioning time: high-quality dry saturated steam provides heat to raise material temperature and gelatinize starch; longer conditioning time increases starch gelatinization, resulting in denser, more stable and harder pellets. For ordinary livestock, conditioning temperature is 70-80℃ (adjusted by steam dosage) and time is about 30s (adjusted by conditioner length, blade angle and speed). For shrimp feed, triple-layer conditioners are usually used to increase temperature and extend conditioning time, improving pellet water stability and hardness.
Conditioners ripen powdery feed. Most animals poorly digest raw starch but digest cooked starch well. Under water and heat, they boost starch gelatinization and protein denaturation, improving pellet feed digestibility and utilization.
Feed conditioners sterilize powders by killing heat-sensitive pathogens (e.g., Escherichia coli, Salmonella) at a specific temperature. This is low-cost, pollution-free, and free of drug residues/side effects, better than drug prevention.
Conditioners enhance pellet water resistance. Steam makes gelatinized starch and denatured protein act as binders; roller extrusion tightens particles, making pellets denser, smoother, and water-stable.
Conditioners improve granulation, increase output, save energy, and extend shrimp feed pellet machine die/roller life. They soften materials, reduce friction, cutting heat conversion and wear.
Livestock feed factories use single-shaft paddle conditioners (30s tempering, 20% starch gelatinization). Aquatic factories need three-layer ones (≥50% feed ripening).
Key Function and Value of Shrimp Feed Machine in Feed Production
The shrimp feed pellet machine is a key piece of equipment in feed production. Its function and configuration directly determine the value of the fish feed production line. With the same formula and process, improving the comprehensive efficiency of the shrimp feed machine can bring direct economic benefits to feed factories. Thus, every feed manufacturer needs to maximize the machine’s role to reduce per-ton feed production costs, boost output and improve feed quality.
The key functions of the shrimp feed machine are mainly reflected in the following aspects:
With corresponding processing technologies (conditioning temperature, water content, ring die compression ratio), it can meet the granulation requirements of feeds with different materials and formulas.
Under the same formula and feed specifications, it features high pelleting yield, low powder ratio, good feed appearance (qualified incision rate, uniform thickness and consistent length), strong particle stability and excellent feeding effect.
The shrimp feed machine operates stably, safely and reliably. All interfaces are hygienically sealed, with low failure rate and long service life of the ring die and roller. It also has high automation and convenient maintenance.
Why Choose AOWIN Machinery?
AOWIN Machinery holds CE/ISO/BV certifications, owns its own factory and professional production equipment. Focused on animal feed, biomass and wood pellet machinery, its pellet machines are sold globally, with customized solutions based on clients’ raw materials, capacity and pellet types.
AOWIN provides one-stop service, covering structural design, equipment production, installation and after-sales support with a professional system.
With more than 30 years of experience in the pellet equipment industry, AOWIN Machinery can offer you professional technical recommendations. Based on on-site surveys for customers, we provide detailed project design schemes, site foundation drawings, and more.
Feed Machinery Installation and Training
AOWIN Machinery has a complete technical training and guidance system. Our technical staff can provide free training on equipment operation, basic maintenance and protection.
After-sales Service
AOWIN Machinery focuses on pellet production equipment, with a professional, highly skilled after-sales team and a modern, information-based after-sales management system. We provide one-stop after-sales service, covering common accessories supply, equipment maintenance and repair, to solve your troubles completely.
AOWIN Machinery, as an equipment manufacturer, offers all-around service. If you want to learn more about the shrimp feed pellet machine, contact us directly—we are always here for you.
