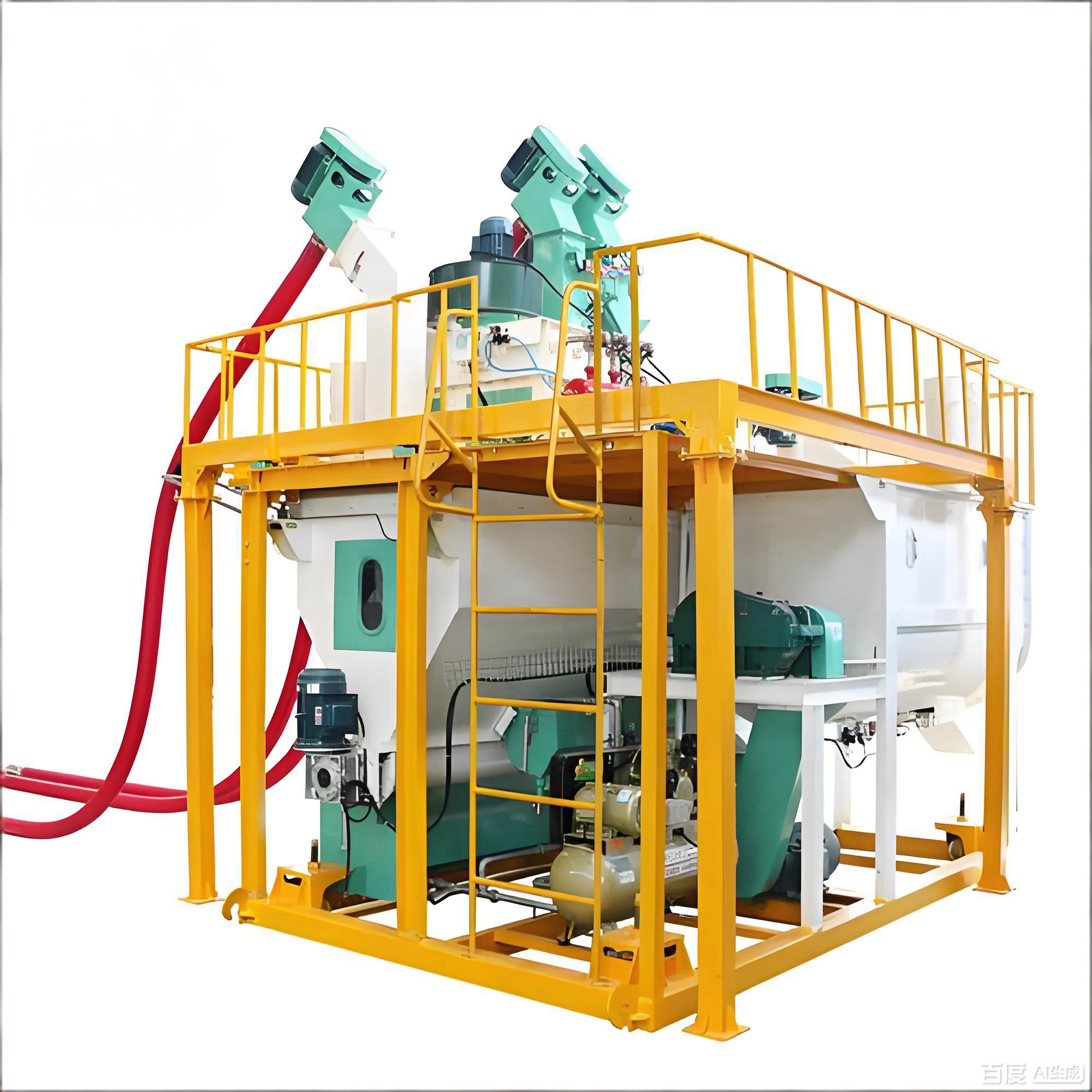

Introducing our New Condition High-Efficient 380V Pellet Machine, the ideal solution for commercial and small-scale farm animal feed processing. Engineered with high-efficiency core components, this 380V feed pellet machine delivers consistent and fast pellet production, meeting the daily feed needs of livestock, poultry, swine, cattle and sheep. As a brand-new farm use feed machinery, it boasts stable performance, low energy consumption and easy maintenance, suitable for continuous industrial use. Its robust structure ensures long service life, making it a cost-effective investment for agricultural farms, feed processing plants and animal breeding bases. We provide reliable after-sales support to ensure your feed production runs smoothly.
Key attributes
2-4 mm, 0.5-2 mm, 4-6 mm, 6-8 mm, 8 mm ~ 12 mm, Customizable
Grains, Straw, Meat & Bone Meal, Aquatic Plants, Mixed Organic Waste
Number Of Blades Included
Pellet Size (Min. order: 1 set)
Name plate (Min. order: 1 set)
voltage (Min. order: 1 set)
Number of molds (Min. order: 1 set)
Product descriptions from the supplier
Suitable for all kinds of different animal
Main Machine | Hammer Mill | Feed Mixer | Pellet Machine | Cooling Machine | Vibrating screener | Packing Machine |
Capacity | 1-2T/H | 500kg/batch | 1-2T/H | 1-2T/H | 1-2/H | 4-6 Bags/Min |
This Poultry feed processing line can be used to make feed pellets for all ages chicken, cattle, and livestock. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry.
Why choose this line?
1. Some customers don't have enough experience in making poultry feed, but they have know enough knowledge about how to raise chickens, which is more convincing when they sell the pellets.
2. The capacity is not big, which can fulfill their requirement for their own farm use, reducing the cost. and the capacity is not too small, take 10 hours working per day, the output for one day is about 10 to 20 tons, which means at least in the 10 years, the capacity of this Poultry feed processing line can meet the requirement of the market.
3. The total invest for this Poultry feed processing line is not big, which also reduces the risk.
Hammer mill
* Advanced water-drop shaped crushing chamber and an optimized secondary crushing structure increase output by 20% compared to other models.* Welding tungsten carbide at both ends of the hammer to improve wear resistance.
* Wear-resistant toothed plates are installed on both sides of the feed inlet, effectively disrupting the material's
circumferential flow and enhancing the impact, rubbing, and shearing actions for higher crushing efficiency.
* An air supply system at the shaft ends replenishes airflow within the crushing chamber, further breaking up the circulating flow of material.
* Two configurable hammer-to-screen clearances and two different rotor configurations are available, optimized for crushing raw materials for aquafeed and livestock & poultry feed, respectively, to maximize efficiency in each application.
The pelletizing system is designed to process grain powder into high-quality feed pellets. At the heart of this complete production line is the feed pellet machine, which is equipped with a stainless steel feeder, conditioner, and ring die to significantly enhance the quality of animal feed. Compared to similar products from other suppliers, our machine offers distinct advantages. The pellet size is adjustable within the range of 2–12 mm to meet various requirements. Counterflow cooler
1. Utilizing the counterflow cooling principle, the system cools high-temperature and high-humidity pellets in a gradual manner from bottom to top. This prevents direct contact between cold air and hot materials, avoiding sudden cooling and thereby preventing surface cracking of the pellets.
2. The octagonal chamber eliminates cooling dead zones, promoting more uniform cooling of the pellets. Equipped with an adjustable stainless steel conical spreading mechanism inside, it ensures even distribution of materials.
Automatic packing machine 20-50kg/bag
All parameters are entered via the panel, with fast and slow feeding, as well as bag clamping and releasing, all controlled automatically.
Weighing controler
The system allows operators to monitor the total production count, facilitating management by exact count for precise batch control.
Henan Aowin Technology Co., Ltd. is a modern technology enterprise based in Henan
Integrating R&D, production, sales and international trade, the company specializes in feed machinery and is committed to delivering efficient and reliable feed processing equipment to global customers. With exceptional product quality, innovative technical solutions and a comprehensive global service network, we are your trusted industrial and commercial partner.
Company Certificates
Your trust is our standard. With authoritative certifications such as ISO, CE and Patent, we ensure that every feed equipment has excellent quality and international safety standards, helping you smoothly and steadily develop your business.
Ready to upgrade your feed mill?
From the vast farmlands of North America to the vibrant pastures of South America, from the rising agricultural sector of Africa to the thriving aquaculture and livestock industries of Asia, the prosperity of the global animal husbandry industry relies on every single pellet of safe and efficient feed.
We are not just equipment manufacturers; we are trusted partners to clients worldwide, injecting robust momentum into the global livestock industry through reliable machinery and technology.
To ensure your equipment remains intact across the oceans, we offer two specialized shipping options tailored to your
transportation needs:
For full container load (FCL) shipments, we perform professional securing inside the container to keep the equipment steadfast during transit. For less than container load (LCL) shipments, each unit is custom-built with sturdy export wooden cases, providing independent, armor-like protection.
Whichever method you choose, we adhere to the highest standards to safeguard your goods and ensure they reach you safely and securely.
1. What is an animal feed pellet machine?
An animal feed pellet machine is a feed processing equipment that compresses raw materials such as corn, soybean meal, wheat, rice husk, straw, and grass into uniform feed pellets based on a specific feed formula.
2. How does a feed pellet machine work?
The crushed raw materials enter the machine and are pressed through the ring die holes under high temperature and pressure. The formed pellets are then cut to the desired length by knives.
3. What is the purpose of a feed pellet machine?
The feed pellet machine is the core equipment for producing animal feed pellets.It is widely used to make feed for poultry and livestock such as chickens, pigs, cattle, sheep, horses, and camels. It is suitable for large, medium, and small-scale farms, as well as feed mills.
4. What is the capacity of the feed pellet machine?
Our feed pellet machines can be customized to meet different production needs, with a capacity range from 1 to 100 tons per hour. Pellet size is also customizable, ranging from 2 to 12 mm.
5. What is the complete feed pellet production process?
The feed pellet production line typically includes the following steps:
Crushing – mixing – pelletizing – cooling – screening – packing. Each section can be flexibly configured and customized according to the specific requirements of the customer.
6. Can a feed pellet machine work without a boiler?
Yes, a feed pellet machine can operate without a boiler or steam. Steam mainly helps to kill bacteria in the raw materials to make the feed safer, and cook the materials to improve digestibility. If your budget is limited, you can start without a boiler and add one later.
