Complete Animal Feed Pellet Production Line | 1-2 Tons/Hour Cattle Poultry Pig Feed Machine

Inquire Now

Product Details

As a leading manufacturer of grain and feed processing equipment, Aowin Technology launches the 1-2 TPH complete feed pellet production line—a tailored solution for small-to-medium scale cattle, chicken and pig feed manufacturing.

This integrated production line covers the entire workflow of feed pellet production:

Raw Material Crushing: Reduces corn, soybean meal, straw and other raw materials to uniform particle size for better mixing.

Precision Mixing: Ensures even distribution of nutrients to improve feed quality and animal growth rate.

High-Quality Pelleting: Adopts ring die pelleting technology to produce dense, smooth pellets with adjustable size (2-8mm) for different animal stages.

Drying & Cooling: Removes excess moisture to extend feed shelf life and prevent mold.

Screening & Packaging: Sorts qualified pellets and supports connection with packaging machines for batch processing.

Product Highlights:

Fixed Capacity Design: 1-2 tons per hour, perfectly matching the demand of small farms and feed workshops.

Multi-Species Compatibility: Versatile for cattle, broilers, layers, pigs and other livestock & poultry feed production.

Energy-Saving & Durable: Heavy-duty steel frame with anti-corrosion treatment, low power consumption and long service life.

Customizable Configuration: Supports semi-automatic or full-automatic operation mode according to customer needs.

Certified Quality: Complies with CE, ISO international standards, ensuring safe and stable operation.

Key attributes

key selling points

Easy To Operate

type

Feed Pellet Machine

capacity

1-2 ton/h

warranty

1 Year

condition

New

place of origin

Henan, China

weight

5000

Pellet Size

2-4 mm, 0.5-2 mm, 4-6 mm, 6-8 mm, 8 mm ~ 12 mm, Customizable

Feed Raw Material

Grains, Straw, Meat & Bone Meal, Aquatic Plants, Mixed Organic Waste

brand name

Aowin

dimension(l*w*h)

8m*3m*4.5m

Engine Type

Electric Engine

Material

Carbon Steel

Number Of Blades Included

Number of molds

Number of Rollers

Phase

Three Phase

voltage

380V

Packaging and delivery

Selling Units

Single item

Customization options

Pellet Size (Min. order: 1 set)

Name plate (Min. order: 1 set)

voltage (Min. order: 1 set)

Number of molds (Min. order: 1 set)

Product descriptions from the supplier

The main products of line

Suitable for all kinds of different animal

The technical parameters

1-2T/H Animal Feed Pellet Production Line
The Detailed Scheme Need To Design According To Your Raw Material

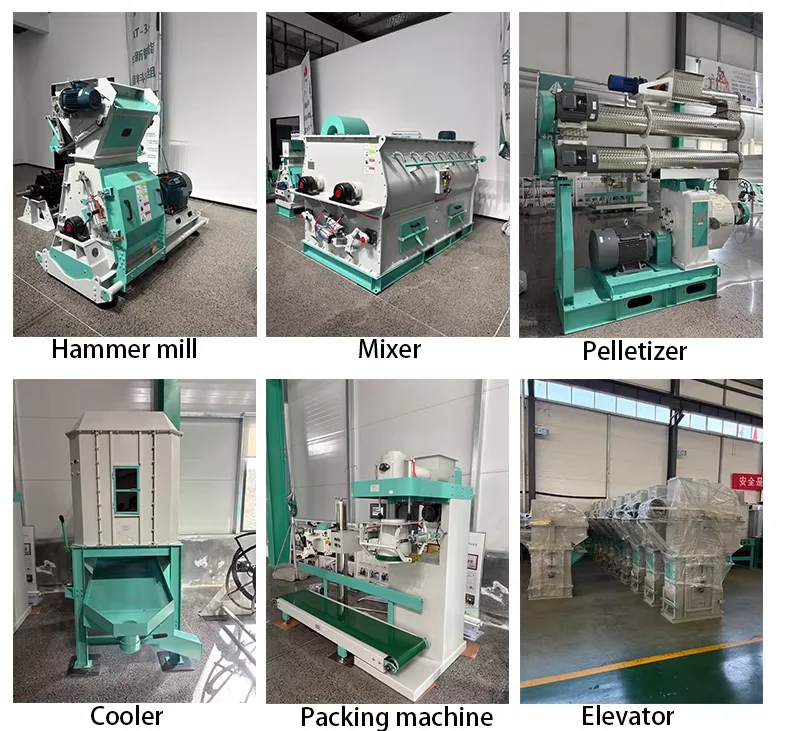

Main Machine	Hammer Mill	Feed Mixer	Pellet Machine	Cooling Machine	Vibrating screener	Packing Machine
Capacity	1-2T/H	500kg/batch	1-2T/H	1-4T/H	1-3/H	5-6 Bags/Min

This Poultry feed processing line can be used to make feed pellets for all ages chicken, cattle, and livestock. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry. pellet machine , pellet mill , pellet making machine , feed machine, feed pellet machine, feed pellet mill

Reasons:

1. they don't have enough experience in making poultry feed, but they have know enough knowlege about how to raise chickens, which is more convincing when they sell the pellets.

2. The capacity is not big, which can fulfill their requirement for their own farm use, reducing the cost; and the capacity is not too small, take 10 hours working per day, the output for one day is about 10 to 20 tons, which means at least in the 10 years, the capacity of this Poultry feed processing line can meet the requirement of the market;

3. The total invest for this Poultry feed processing line is not big, which also reduces the risk.

The main production process

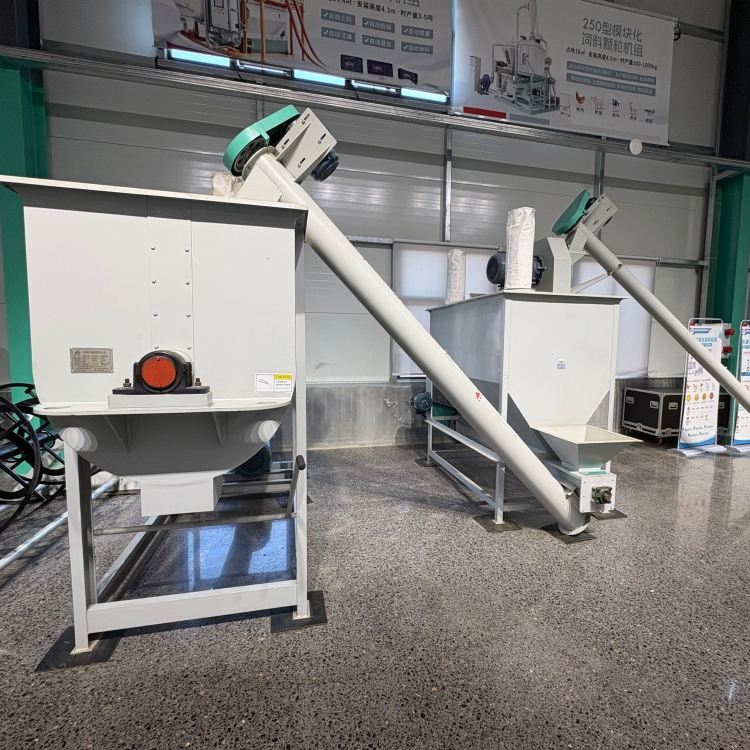

Crushing&Mixing System

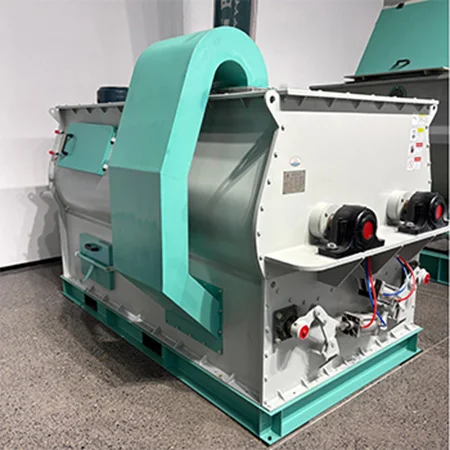

The crushing and mixing system is used for crushing the different raw material to becomes 3mm powder and through the mixing let the different raw material to pelletizing. OAIN feed mixer is high uniform, patent the ribbon design enhanced material flow, shear, mixing, mixing uniformity very good, CV≤5%.

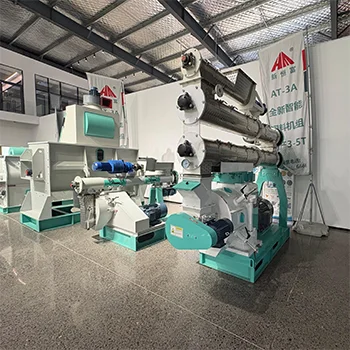

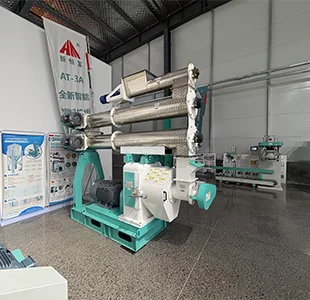

Pelletizing System

The pelletizing system can let to make grain powder into feed pellets. The feed pellet machine is the main equipment in the complete line to make feed pellets. Our feed pellet machine is also equipped with stainless steel of feeder, conditioner, and ring die. It can greatly improve the quality of animal feed. Compared to the same products from other suppliers, it have obvious advantages. The pellet size is 2-12mm can be choose.

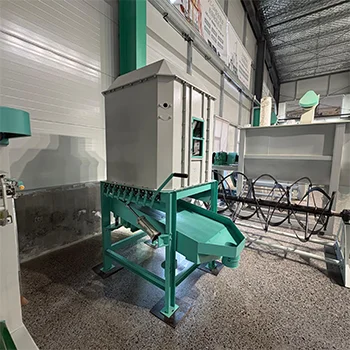

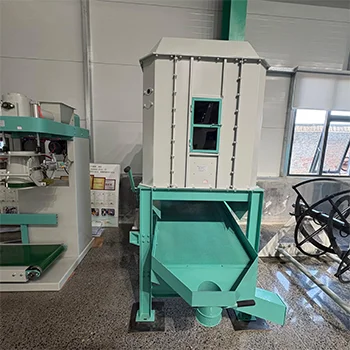

Cooling system

The cooling system can cool the down to room temperature immediately, pellets come out from pellet machine, its temperature is around 80/90℃, by momentary cooling, the hardness of pellets will become more stronger. Thus to acquire better hardness and strength. Also it can enhance the transport ability and storage ability.

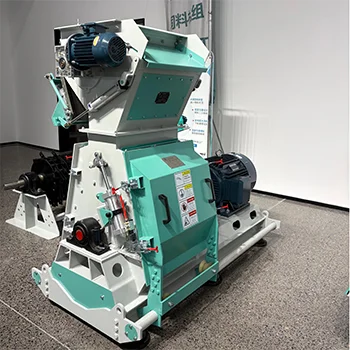

hammer mill

The Crumbler is the main equipment for making small baby chicken feeds. It will to crush the big feed pellets to pellet 1mm -1.5mm. Because the baby chicks have a very weak digestive system, so just this small size of feed pellets is suitable for small chicken. With high productivity, low power consumption, convenient adjustment, low temperature, less powder etc. It's used in livestock and poultry feed, aquatic feed broken.

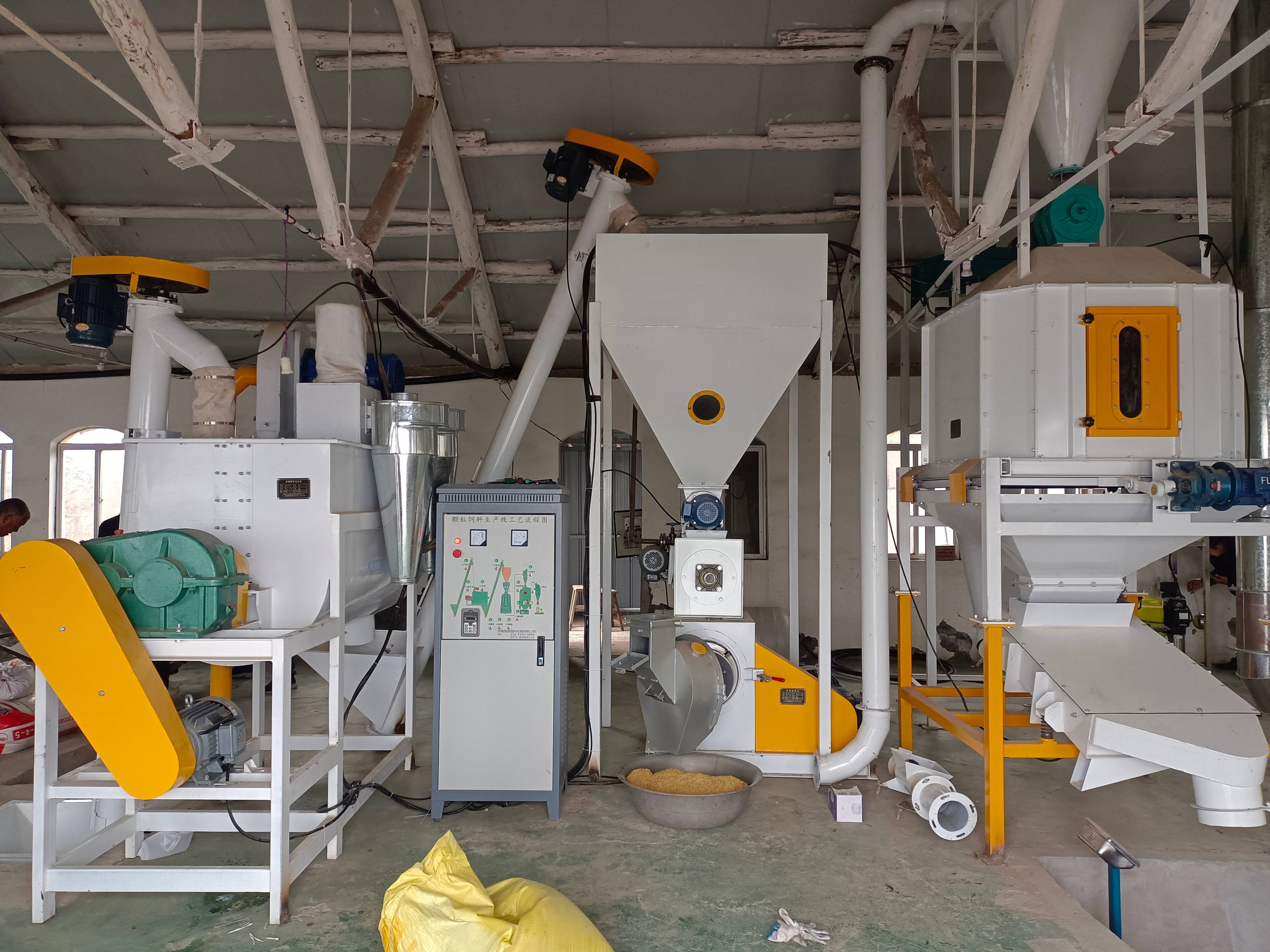

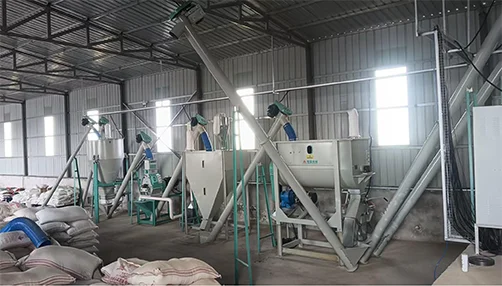

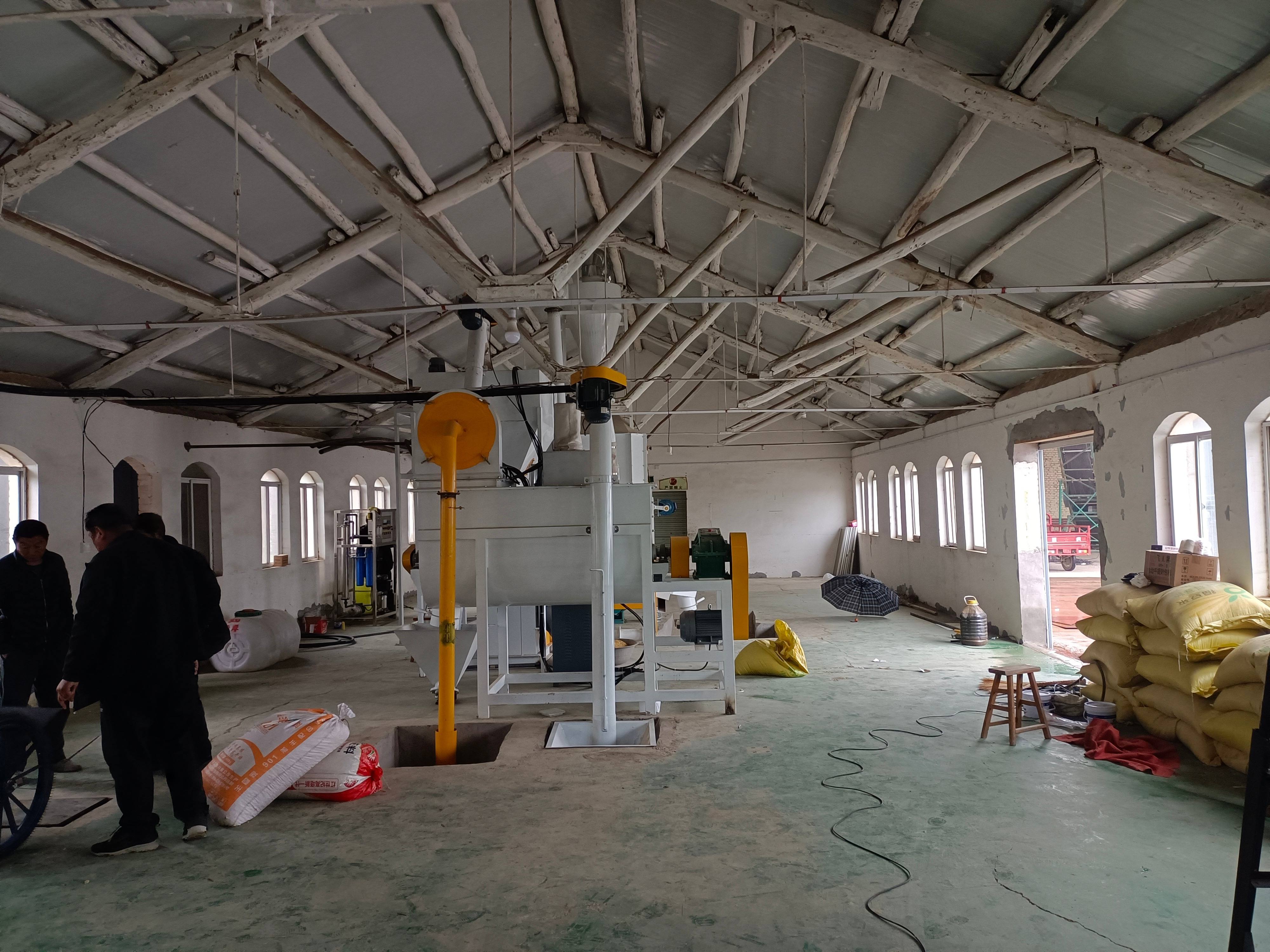

The 2T/H small feed pellet line

AOWIN small feed pellet line is a best suitable choice for small farm owners and those who plan to step into the poultry feed making industry. Low cost, low energy.

Packing detail
Standard containers, bare main machine, motors and small parts are packed in wooden cases.
Delivery process
Packing, loading, transportation, installation

FAQ

1. What is an animal feed pellet machine? An animal feed pellet machine is a feed processing equipment that compresses raw materials such as corn, soybean meal, wheat, rice husk, straw, and grass into uniform feed pellets based on a specific feed formula. 2. How does a feed pellet machine work? The crushed raw materials enter the machine and are pressed through the ring die holes under high temperature and pressure. The formed pellets are then cut to the desired length by knives. 3. What is the purpose of a feed pellet machine? The feed pellet machine is the core equipment for producing animal feed pellets.It is widely used to make feed for poultry and livestock such as chickens, pigs, cattle, sheep, horses, and camels. It is suitable for large, medium, and small-scale farms, as well as feed mills. 4. What is the capacity of the feed pellet machine? Our feed pellet machines can be customized to meet different production needs, with a capacity range from 1 to 100 tons per hour. Pellet size is also customizable, ranging from 2 to 12 mm. 5. What is the complete feed pellet production process? The feed pellet production line typically includes the following steps: crushing – mixing – pelletizing – cooling – screening – packing. Each section can be flexibly configured and customized according to the specific requirements of the customer. 6. Can a feed pellet machine work without a boiler? Yes, a feed pellet machine can operate without a boiler or steam. Steam mainly helps to (1) kill bacteria in the raw materials to make the feed safer, and (2) cook the materials to improve digestibility. If your budget is limited, you can start without a boiler and add one later.
